● Cassette reader FCR Prima T ● Cassettes 2 times 24x30 & 2 times 35x43 cm ● Operation console for FCR ● Barcode reader ● Mini PACS DWS+ with A3 monochrome paper printer
Basic system DR
System comprises:

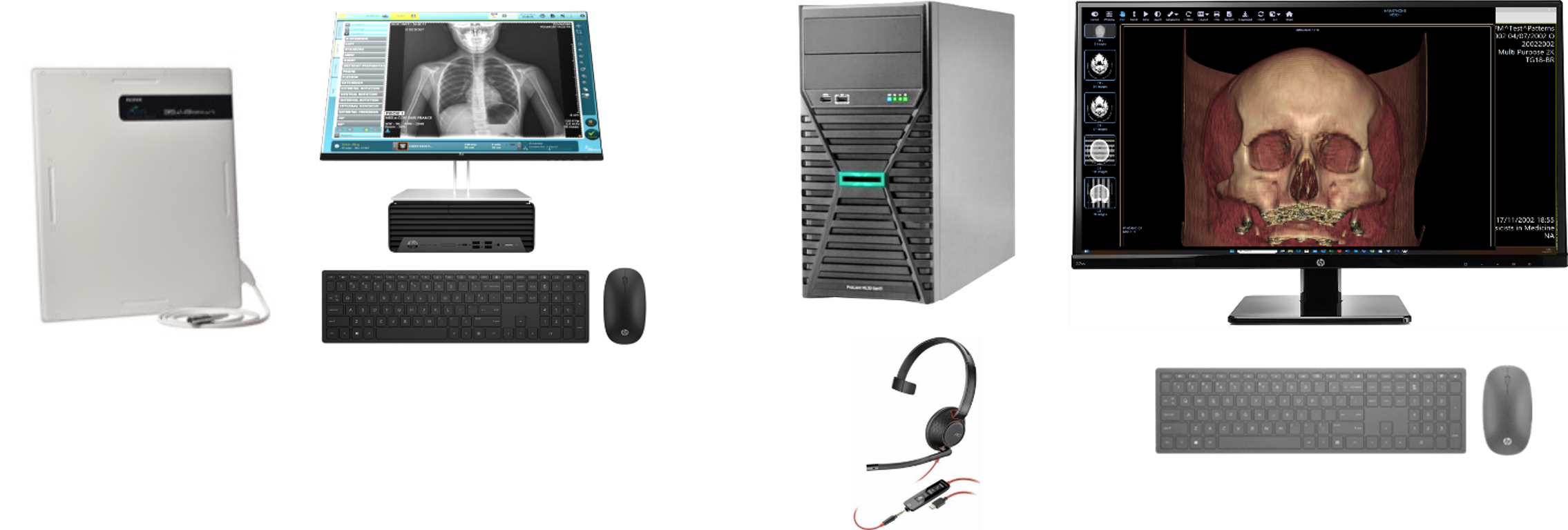

● FDR detector 35x43 cm wireless ● Operation console for FDR ● Mini PACS DWS+ with A3 monochrome paper printer
Economy system CR
System comprises:

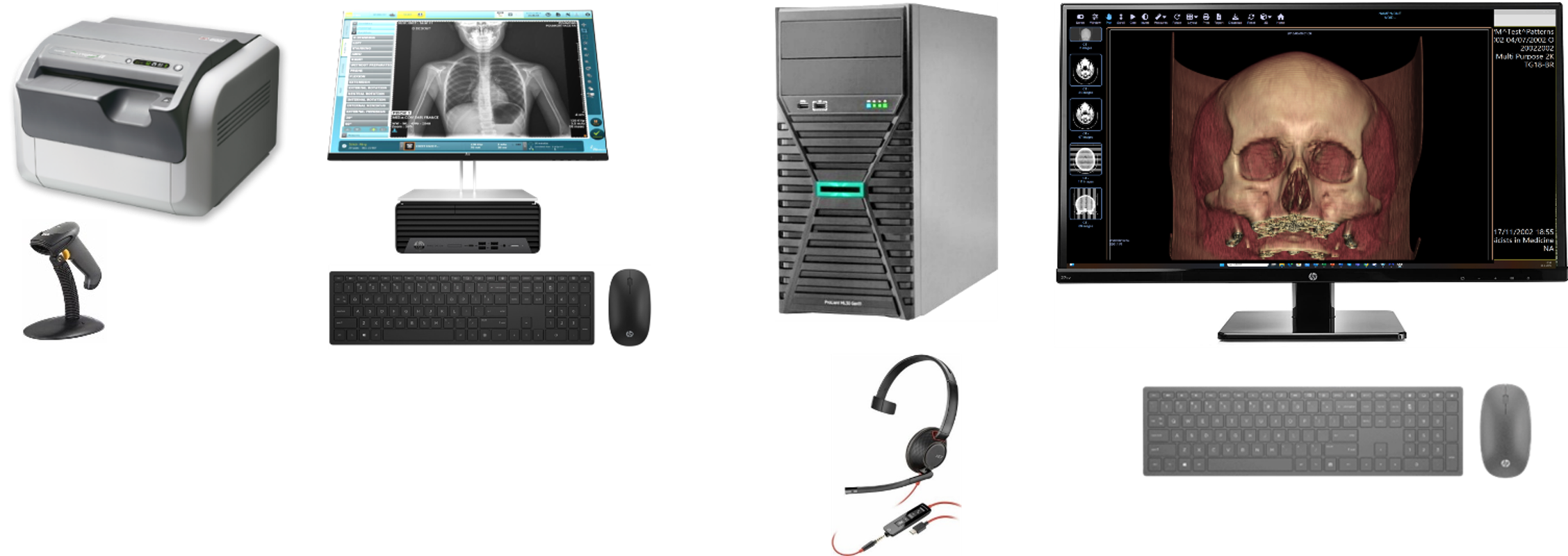

● Cassette reader FCR Prima T ● Cassettes two times 24x 30 cm & two times 35x43 cm ● Operation console for FCR ● Barcode reader ● Dicom PACS Server DPS6 with 6 TB storage capacity ● Data backup system DBS6 with 6 TB storage capacity ● Dicom viewing station DVS Pro, 2 times ● MPR/3D reconstruction software
Economy system DR
System comprises:
● FDR detector 35x43 cm wireless ● Operation console for FDR ● Dicom PACS Server DPS6 with 6 TB storage capacity ● Data backup system DBS6 with 6 TB storage capacity ● Dicom viewing station DVS Pro, 2 times ● MPR/3D reconstruction software
Comfort system
System comprises:
● FDR detector 35x43 cm wireless ● Operation console for FDR ● Dicom PACS Server DPS12 with 12 TB storage capacity ● Data backup system DBS12 with 12 TB storage capacity ● Dicom Viewing Station DVS Top, 2 times ● MPR/3D reconstruction software
Premium system
System comprises:
● FDR detector 43x43 cm wireless ● Operation console for FDR ● Dicom PACS Server DPS18 with 18 TB storage capacity ● Data backup system DBS18 with 18 TB storage capacity ● Dicom viewing station DVS Pro, 4 times ● Dicom viewing station DVS Top, 2 times ● MPR/3D reconstruction software
Radiology System Upgrades to Digital acquisition
FCR cassette reader with Console and cassettes 24x30 & 35x43
FDR detector 35x43 cm wireless with Console FDR detector
FDR detector 43x43 cm wireless with Console
Radiology PACS components
PACS servers
DPS 6 Dicom PACS Server with 6TB storage DPS 12 Dicom PACS Server with 12TB storage DPS 18 Dicom PACS Server with 18TB storage
The DICOM PACS Server is a compact system with capacity for over 300.000 patient cases. In principle, the number of connected viewing stations is unlimited, with connections made via standard LAN. Risk of data loss is prevented through a RAID5 disk system, and optionally by a network drive (see DBS). The DPS is compatible with all DICOM 3.0 and NEMA 2 modalities (CT, MR, NM, US, XA, MG and CR).
An optional version for rack mounting in a standard 19” computer rack is available, including keyboard and monitor in rackmount version.
The DPS server can be delivered with a VPN router to enable VPN Client to Gateway connections which will make it possible for physicians at home to access the PACS server, located in the hospital, via a safe internet connection. Also this router is capable of establishing a so-called Gateway to Gateway connection to setup a safe encrypted connection between two (or more) different hospitals all over the world. A total 20 VPN tunnels can be programmed in the router. The server will be connected to several workstations and image modalities in the hospital and for that reason also a 16 port gigabit switch is part of the standard delivery.

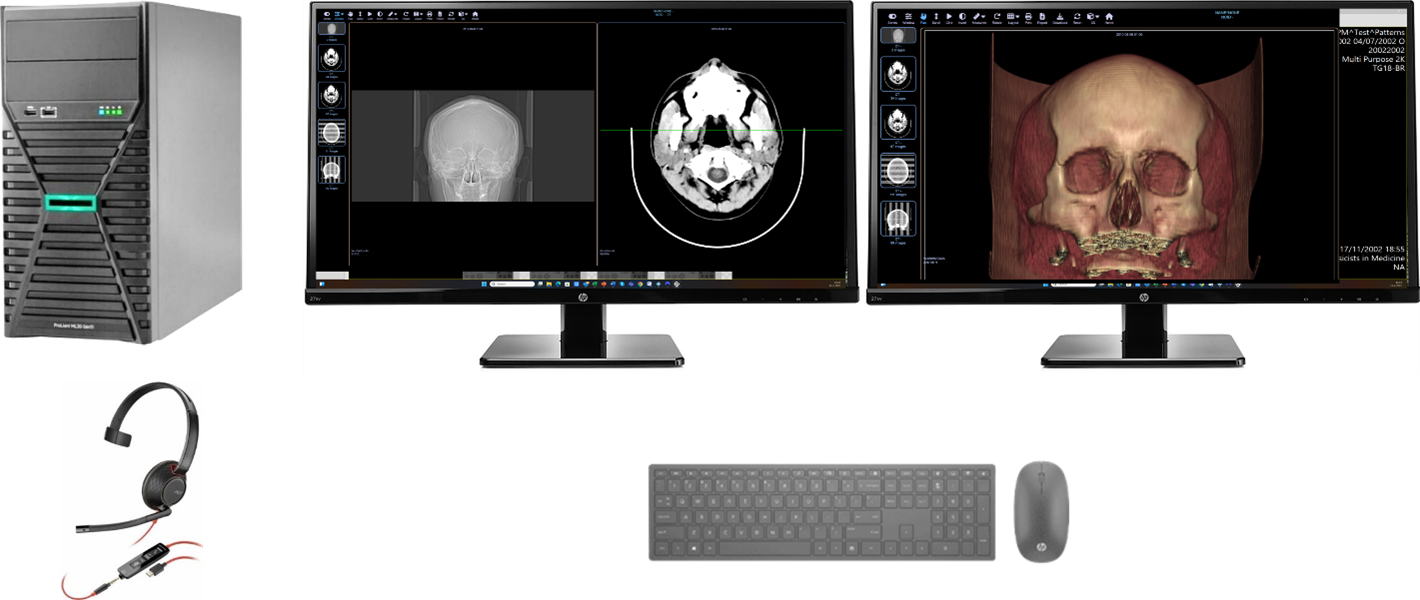

● Based on HPE Proliant ML350 Gen 10 server family (or DL360 in rackmount version) ● Standard provided with 64 GB dynamic RAM ● Optional a second processor in case of heavy traffic can be installed
Workstations
DVS Basic Single monitor Dicom Viewing Station
The Dicom Viewing Station is the main workstation for physicians to study patient cases stored in the PACS server. All commonly used DICOM viewing tools are available. Searching for patient cases can be done in different ways, e.g., patient ID, patient name, examination date, etc. Case reports can be edited and also stored in the patient file in DICOM format. CD/DVD burning is a standard function and image and/or report printing at a central DICOM printer (DPP) can be done.
System comprises:

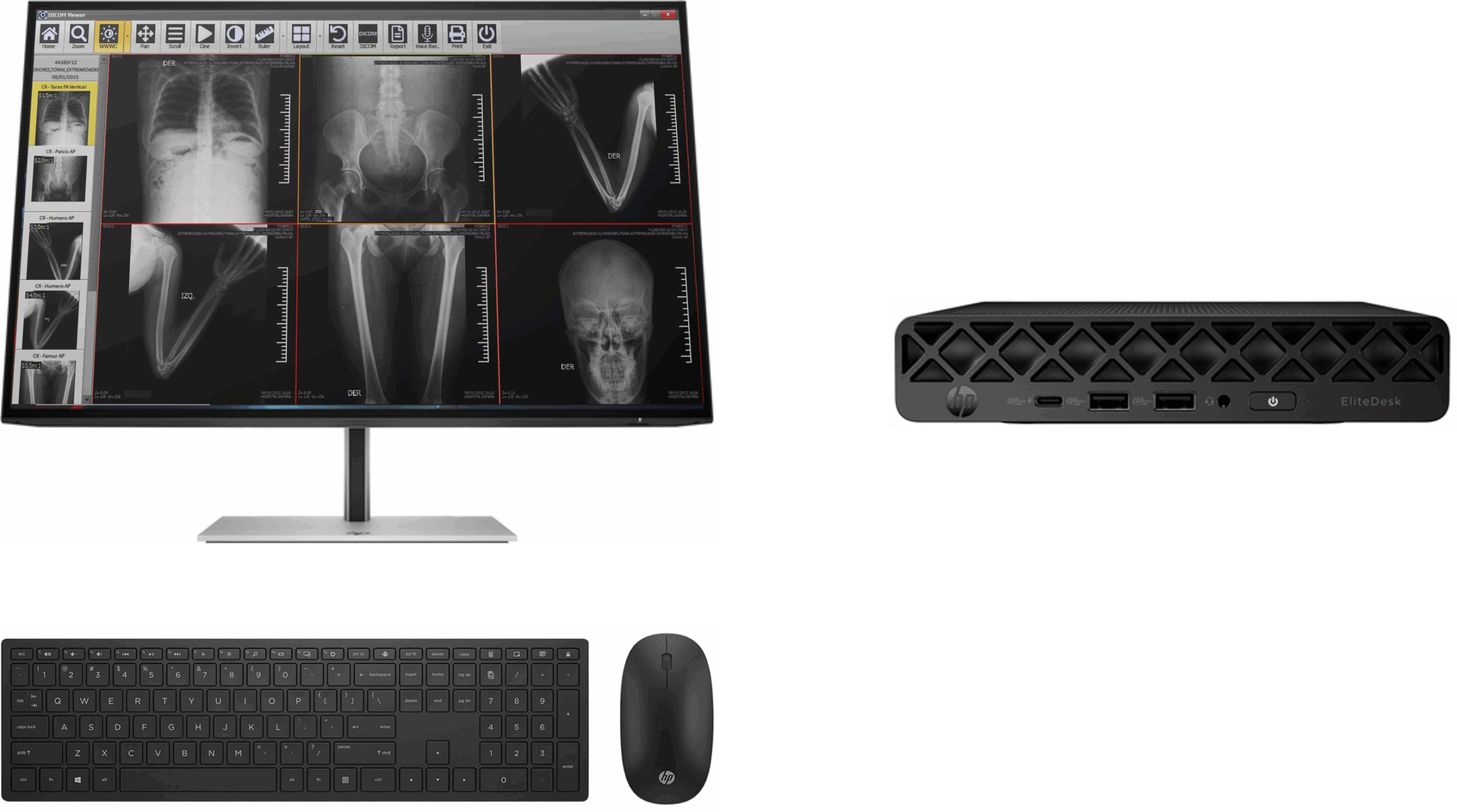

✔ Based on HP Business Desktop ProDesk 400 G7 I3 ✔ Processor Intel I3-10100 ✔ Storage 8GB SDRAM & 256 GB SSD ✔ Graphic Controller Intel UHD Graphics 630 ✔ Operating System Windows 11 Pro – 64 bit ✔ Monitor HP Business Z24f G3 LED LCD 24" 2MP - 2K HD ✔ CRCB-PACS standard DICOM viewer
DVS Pro Single monitor Dicom Viewing Station with 3D viewer
The Pro version of the DVS has two major improvement aspects compared to the Basic version. First at all the Radiant DICOM viewer with 3D and MPR (Multiplanar Reconstruction) is installed additional to the standard CRCB-PACS viewer. As radiologists often need to write diagnostic reports including also (part of) the medical images, Microsoft Office is a standard tool on this version of the DVS.
System comprises:

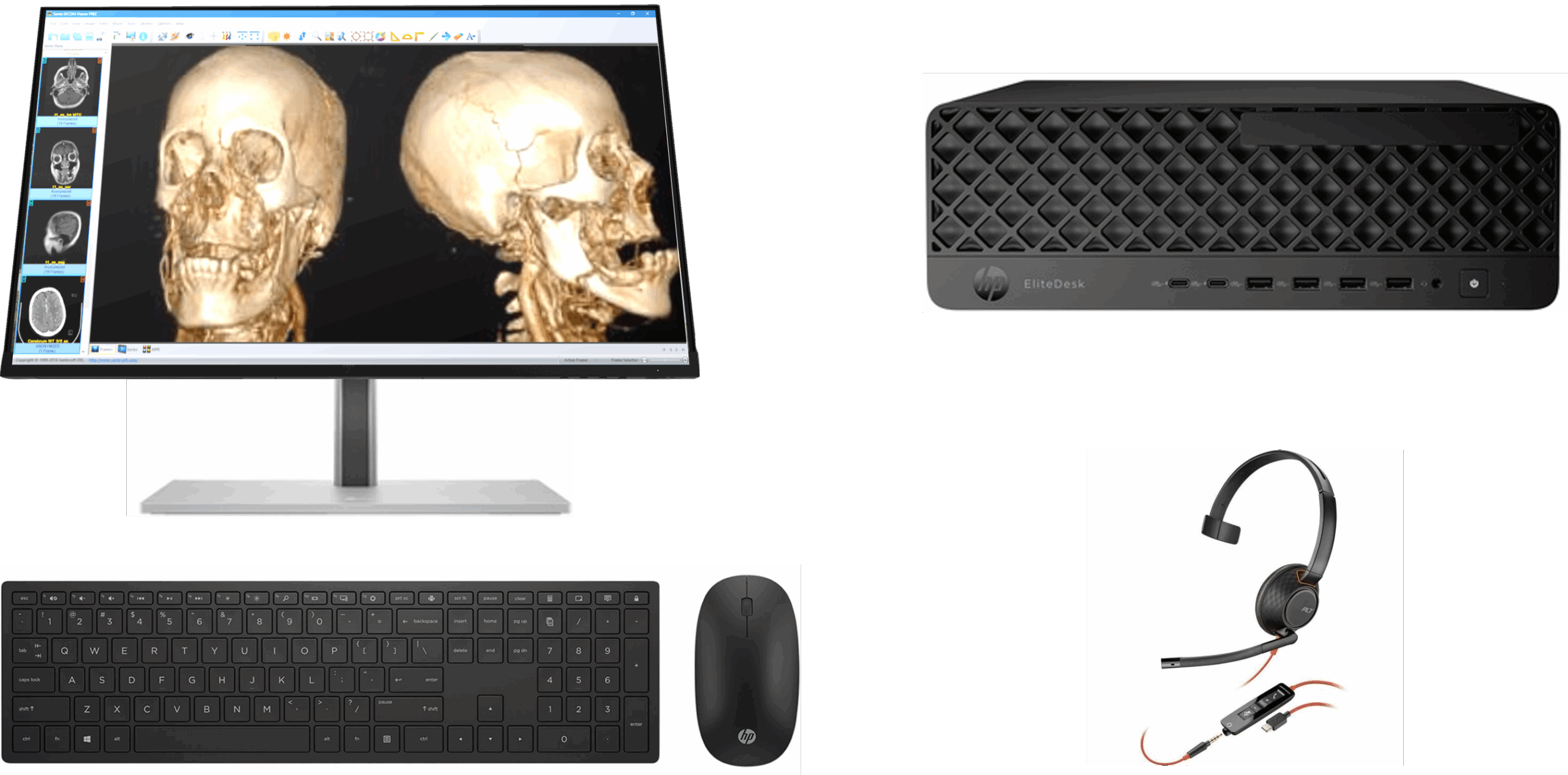

✔ Based on HP Elite 600 G9 I5 ✔ Processor Intel I5-12500 ✔ Storage 16GB SDRAM & 256 GB SSD ✔ Graphic Controller Intel UHD Graphics 770 ✔ Operating System Windows 11 Pro – 64 bit ✔ Monitor HP Z27q LED LCD 27" 4MP – WQHD ✔ Radiant 3D/MPR DICOM viewer & CRCB-PACS standard DICOM viewer ✔ Microsoft Office 2021 with permanent license
DVS Top Triple monitor Dicom Viewing Station with 3D viewer
The DVS Top is the ultimate solution in workstations for radiology departments. Commonly one or more of these configurations will be found at the diagnostic room of the hospital radiology department. Both image monitors can easily be positioned in vertical direction which is also quite common at diagnostic rooms.
System comprises:
✔ Based on HP Z2 G9 mini Workstation ✔ External CD/DVD drive ✔ Processor Intel I7-12700 ✔ Storage 32GB SDRAM & 512 GB SSD ✔ Graphic Controller Intel UHD Graphics 770 ✔ Operating System Windows 11 Pro – 64 bit ✔ Image Monitors 2x HP Business Z27K G3 LED LCD 27" 8MP - 4K UHD ✔ Administration monitor HP Business Z24f G3 LED LCD 24" 2MP - 2K HD ✔ Radiant 3D/MPR DICOM viewer & CRCB-PACS standard DICOM viewer ✔ Microsoft Office 2021 with permanent license
Data backup
DBS 6 Data Backup System with 6TB storage DBS 12 Data Backup System with 12TB storage DBS 18 Data Backup System with 18TB storage DBS 36 Data Backup System with 36TB storage
To assure maximum data security, the Data Backup System gives a secondary data storage option which can be connected to the LAN in any part of your facility, at a safe distance from the PACS server. Installing the backup system at a different location can help to ensure that data will be protected, even in the case of, for example, a fire in one part of the facility. Updates from the PACS server are made automatically.
At a certain moment the storage of the PACS server and data backup unit will be almost completely filled. At that time a second DBS should be connected to the network and assigned in the PACS server as the new backup location. The main storage of the server can then be deleted as all data is still available at DBS 1. Patient cases stored at DBS 1 can be reloaded to the PACS server easily in case a radiologist needs that for further study.
RIS Radiology Information System
The Radiology Information System gives the hospital a tool to control and document all the work per patient. All relevant patient demographics are brought into the system at the reception desk and automatically sent to the right modality via the HL7 compatible link.
At installation of the RIS in the hospital the system will be configured completely to fit to the organizational structure of the radiology department and to the requirements of the end users.

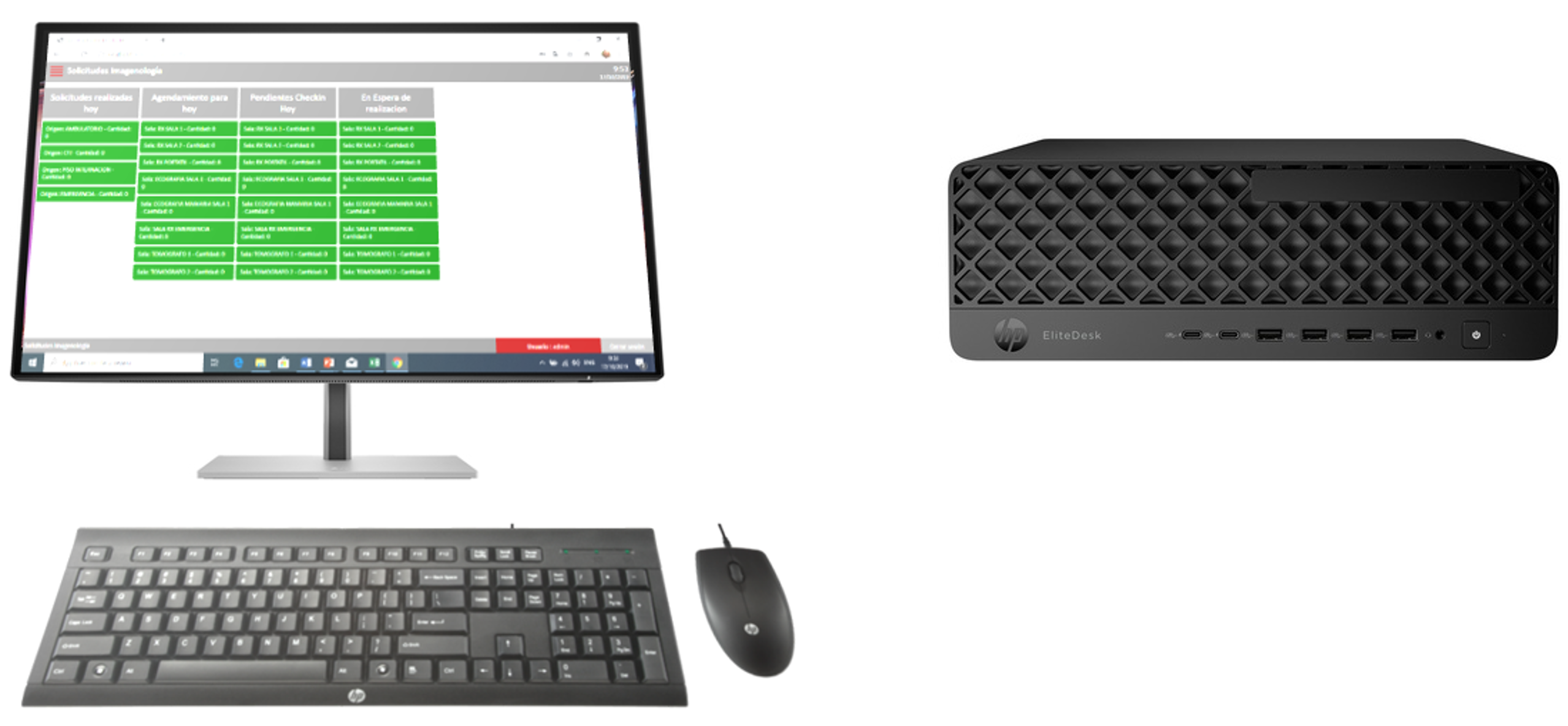

The RIS server will be installed in the PACS server system, or if not available, in the PC as shown in the picture. Operation of the RIS by end users can be done from any terminal, like our workstations or the above shown RIS workstation throughout the hospital via the PACS LAN.
System comprises:
✔ Based on HP Elite 600 G9 ✔ External CD/DVD drive ✔ Processor Intel I5-12500 ✔ Storage 16GB SDRAM & 256 GB SSD ✔ Graphic Controller Intel UHD Graphics 770 ✔ Operating System Windows 11 Pro – 64 bit ✔ Monitor HP Business Z24f G3 LED LCD 24" 2MP - 2K HD
Film printer DryPix Edge 3T
The Dry Imager Laser Printer is a system designed for radiology departments to make medical film prints from their DICOM modalities directly. It provides extraordinary imaging capabilities, from clear and precise images with high diagnostic value, to advanced image networking potential.
● Selection of three film formats out of 35x43 / 26x36 / 20x25 in blue base or clear base ● Connects directly to the PACS LAN network ● 14 bits resolution
Film Digitizer Medi 6000 Plus
The Medi-6000 Plus film digitizer allows to digitally scan and store the images of the existing conventional x-ray films. It is designed to deliver high image quality combined with fast scanning. In as little as 12 seconds a 35 x 43 cm film can be digitized at 300 dpi resolution. A DICOM workstation with special software is provided to scan films and store image files at the PACS server.
DICOM Paper Printers
DPP Dicom Paper Print (A4) with mono printer HP laserjet M406DN DPP C Dicom Paper Print (A4) with color printer HP laserjet M555X DPP+ Dicom Paper Print (A3) with mono printer HP laserjet M712DN DPP+C Dicom Paper Print (A3) with color printer HP laserjet M776DN
The DICOM Paper Print solution is ideal for radiology departments with digital imaging equipment but still using expensive digital film. With DPP, you print your images on standard paper in A3 or A4 format. In combination with high quality paper, the result is a printed image that feels like a classical film, with the benefit of absolute white (paper) and almost absolute black (toner) and at a price level of less than 20% of digital film.
If a DPP system is ordered in combination with a PACS server (DPS), the Printer Interface Box is integrated in the PACS server.
Set of 5 black toner cartridges for DPP (HP M406DN) Set of 5 color toner cartridge packs for DPP C (HP M555X) Set of 5 black toner cartridges for DPP+ (HP M712DN) Set of 5 color toner cartridge packs for DPP+C (HP M776DN)
DWS mini PACS solutions
DWS standard (mini PACS with A4 paper printer and 2MP monitor) DWS HiRes (mini PACS with A4 paper printer and 8MP monitor) DWS+ (mini PACS with A3 paper printer and 2MP monitor) DWS+ HiRes (mini PACS with A3 paper printer and 8MP monitor)
The DWS is our mini PACS system and the ultimate solution for small clinics and hospital departments needing an electronic patient archive. With DWS you can store over 10.000 patient files, study cases at the 24” monitor in 2MP resolution and copy patient files to CD/DVD. DICOM paper printing is integrated to produce the high quality A3 or A4 print outs. Image storage is done on a second SSD to guarantee maximum reliability. The workstation is also suitable for general practitioners as it can query/retrieve from external PACS databases via the internet. The DWS is also available in high resolution mode with a 27” 4K UHD – 8MP monitor . For reporting purposes, MS Office 2021 with permanent license is installed.digital film. If a DPP system is ordered in combination with a PACS server (DPS), the Printer Interface Box is integrated in the PACS server.
WNS Wireless Network System WAP Wireless Access Point
The Wireless Network System makes it possible for doctors and others to review cases on their tablets and notebooks in those areas of the hospital where WiFi access points are installed. One access point is included in the WNS option but more can be installed to guarantee optimal receipt of the wireless signal at several different locations.
UPS 1500VA UPS 2000VA UPS 3000VA
To prevent system down during power failures, the UPS is a perfect solution to guarantee power continuation without interruption, with the result that the connected systems will be able to continue to operate during these power failures. Even more important is the capability of suppressing high voltage spikes on the local power lines during thunderstorms to protect the electronic circuits of the connected devices.
